FC D Model

FC D Model Outdoor LED Display Waterproof High Brightness

FC D Model Outdoor LED Display features pixel pitch from 1.953 to 4.81 and brightness up to 4500 cd/㎡ for stunning HD full-color outdoor displays

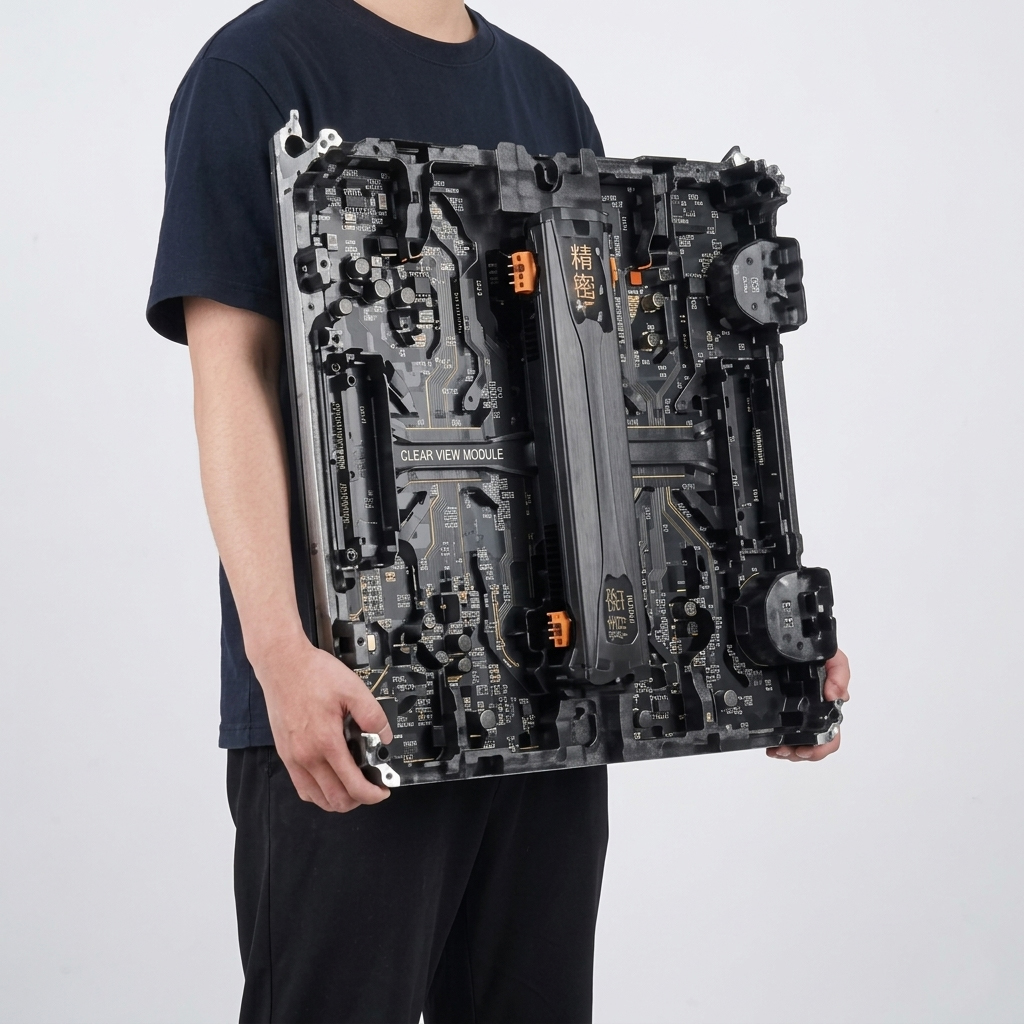

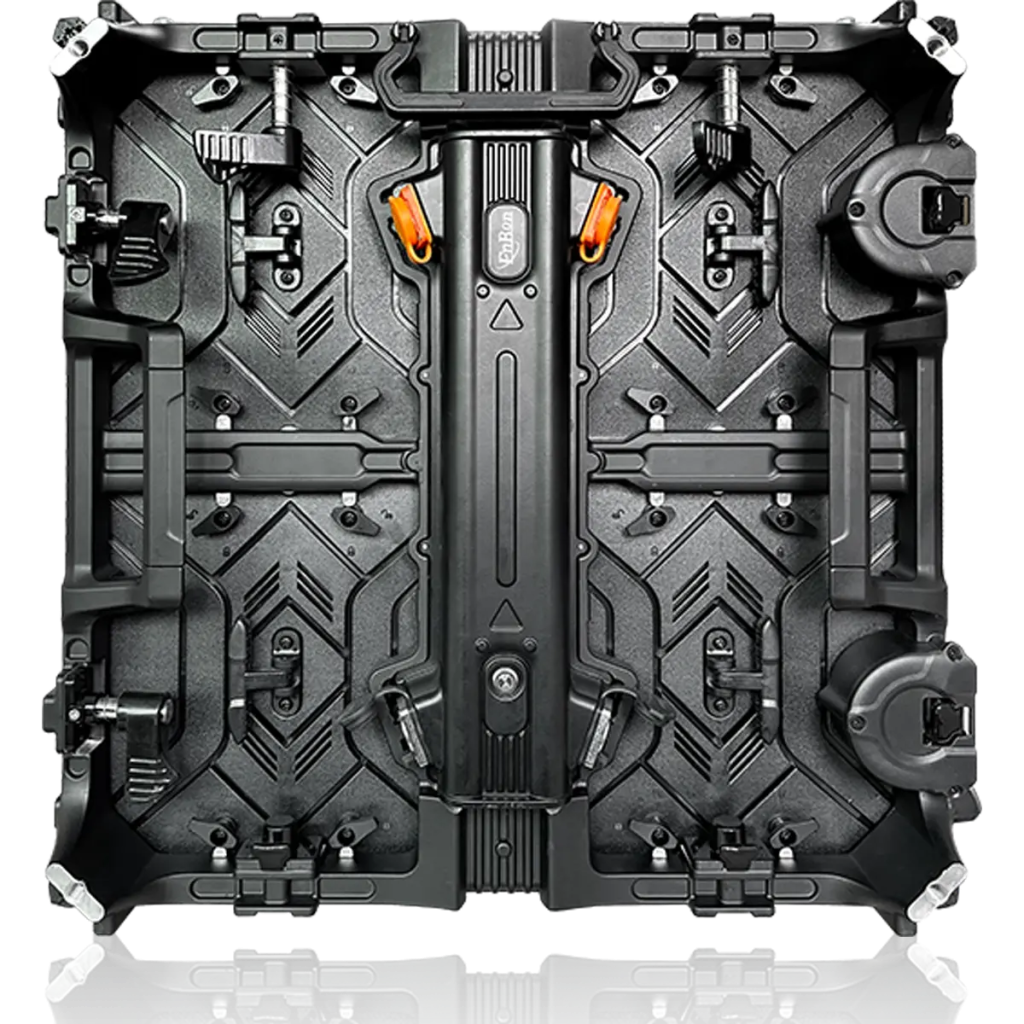

Lightweight & Precise Design

The FC-D Model features a lightweight 7.5KG die-cast aluminum cabinet. This precise engineering not only simplifies transportation and installation but also reduces the weight burden on buildings or supporting structures.

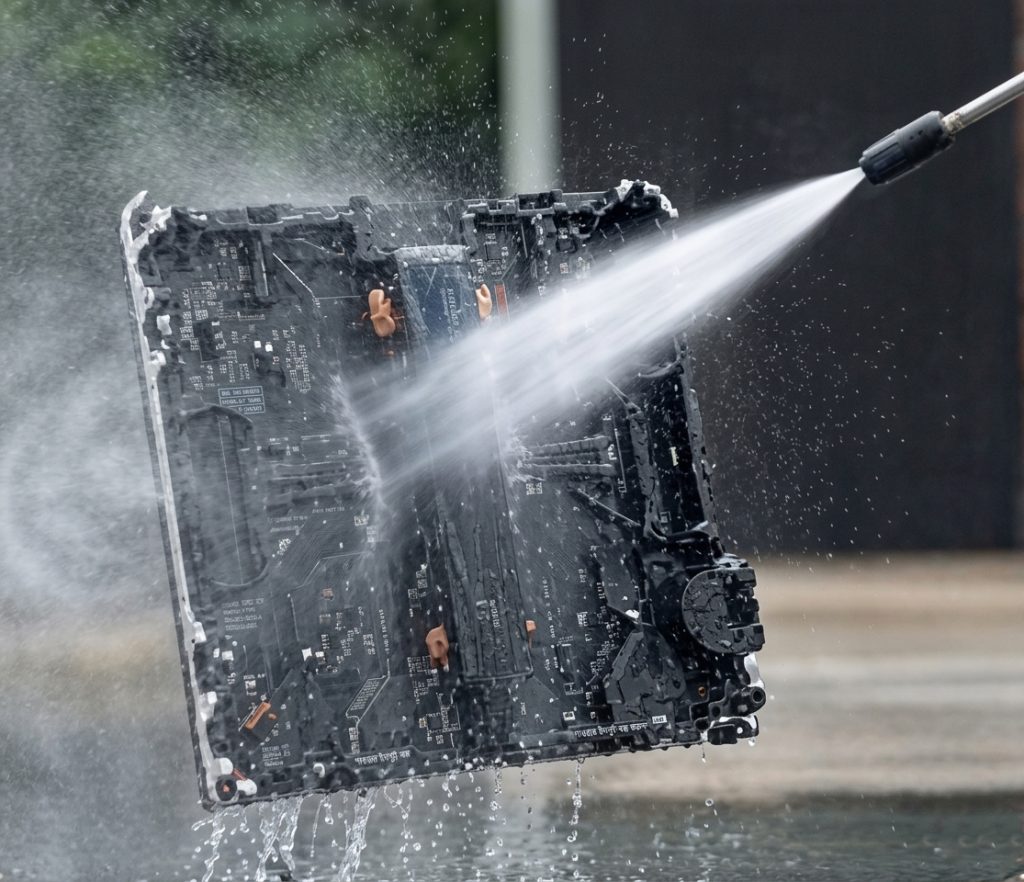

IP65 All -WEATHER

Completely sealed for harsh outdoer environments. Tested to resist heavy rain, dust, and huntidity.

ANTI-SALT CORROSION FOR COASTAL ENVIRONMENTS

Specially trected with protsctive coatings to prevent rust and domoge in seasids areas and high-salinity lecetiens.

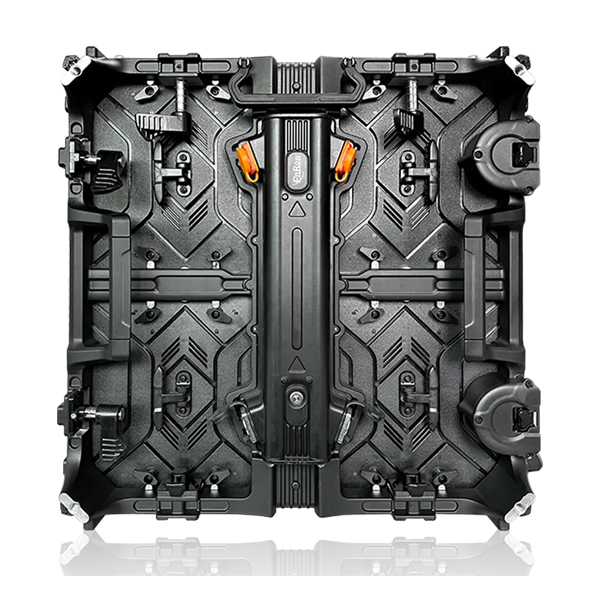

Dual-Access Maintenance

Enjoy unparalleled flexibility with support for both front and rear maintenance. This design drastically reduces maintenance time and effort, making it ideal for various installation environments where rear access may be limited.

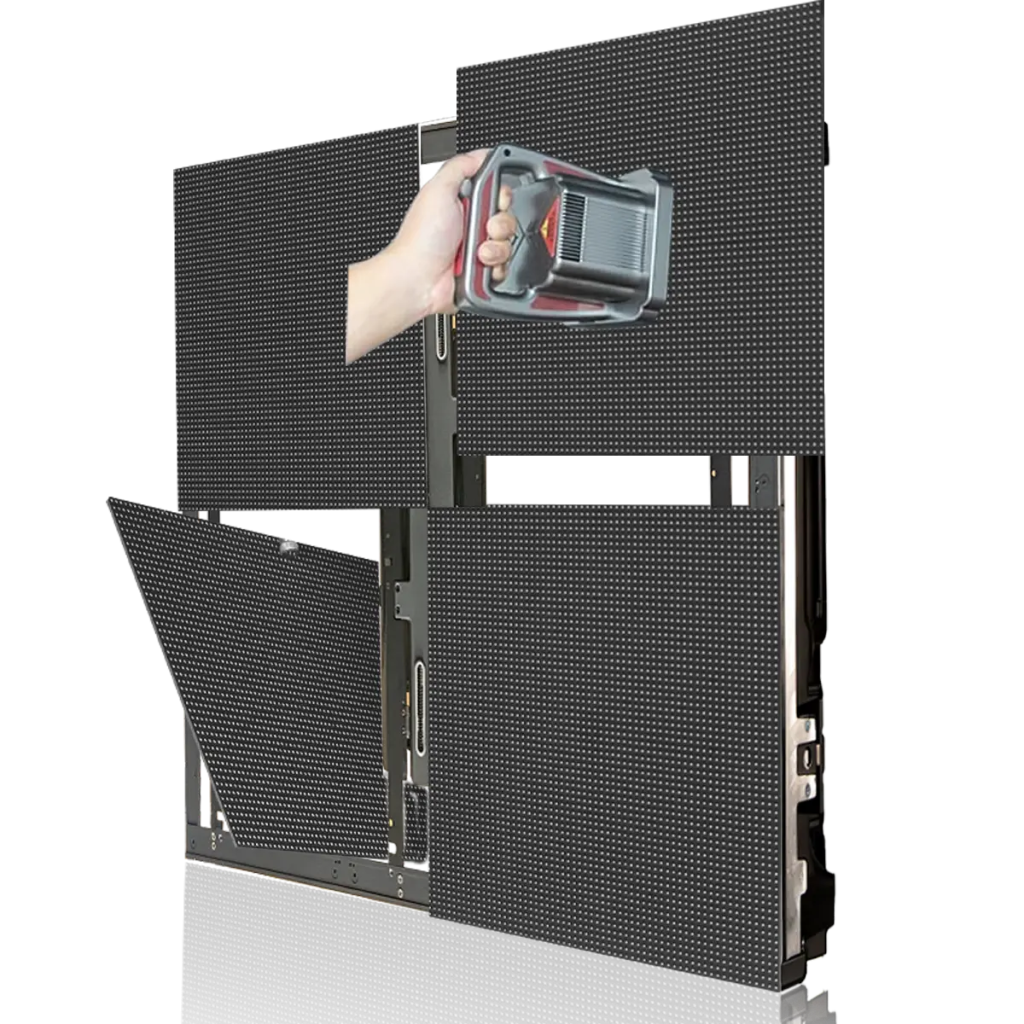

Maintenance Method

Support Full Front Or Full Rear Maintenance,
Front Maintenance Can Be installed
Directly On The Wall

FC DModel

Totally Front Maintenace lED Screen

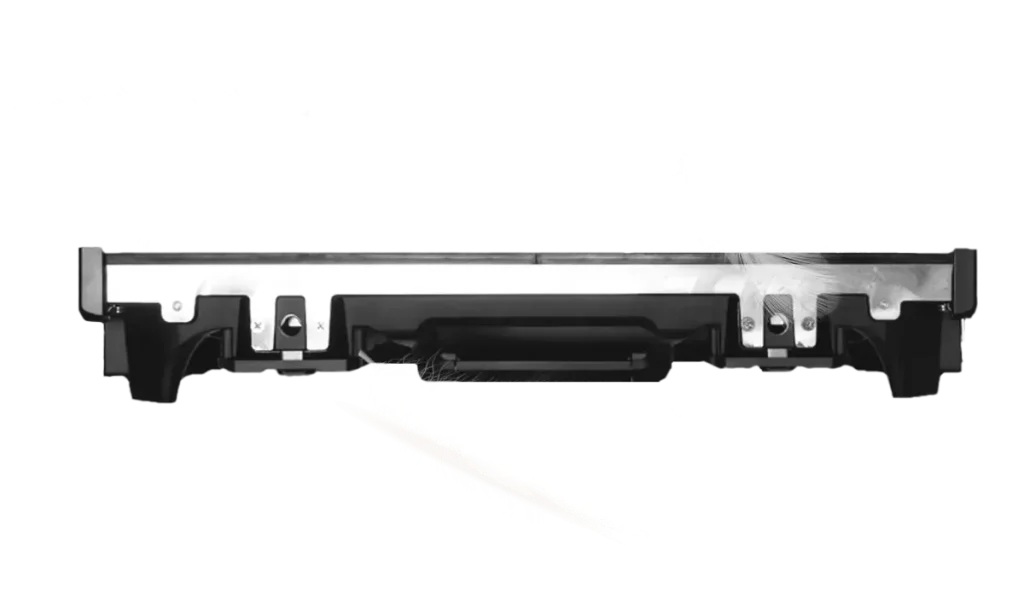

Super Lightweight

Light Weight, Aluminum Panel 25kg /pcs With Thickness is 100mm

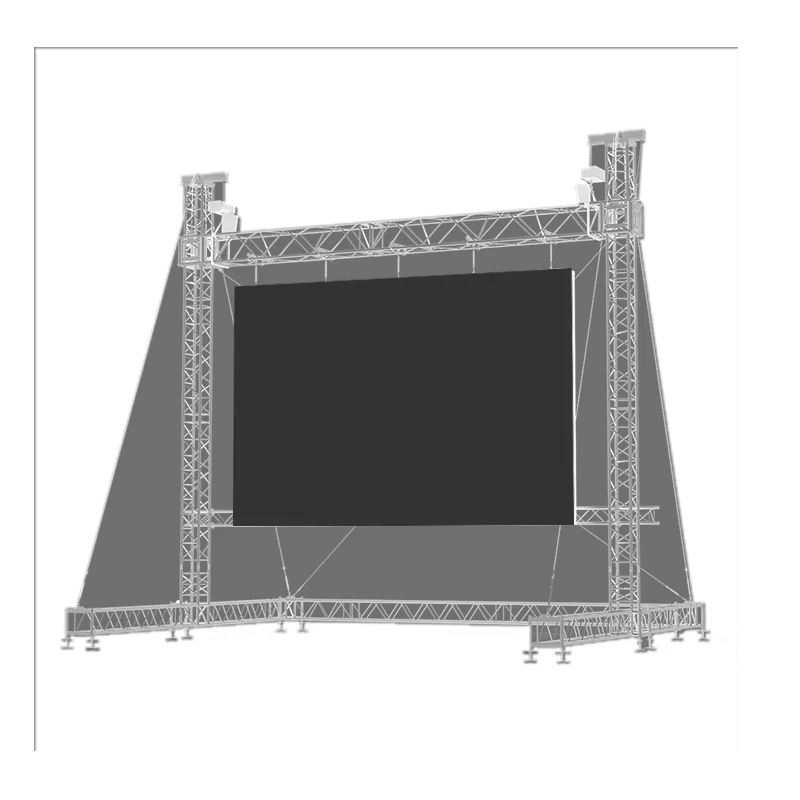

Installation Case

Low Power Consumption, High Efficiency

Advanced power design reduces energy usage while maintaining high brightness and stable performance. Save energy, save cost

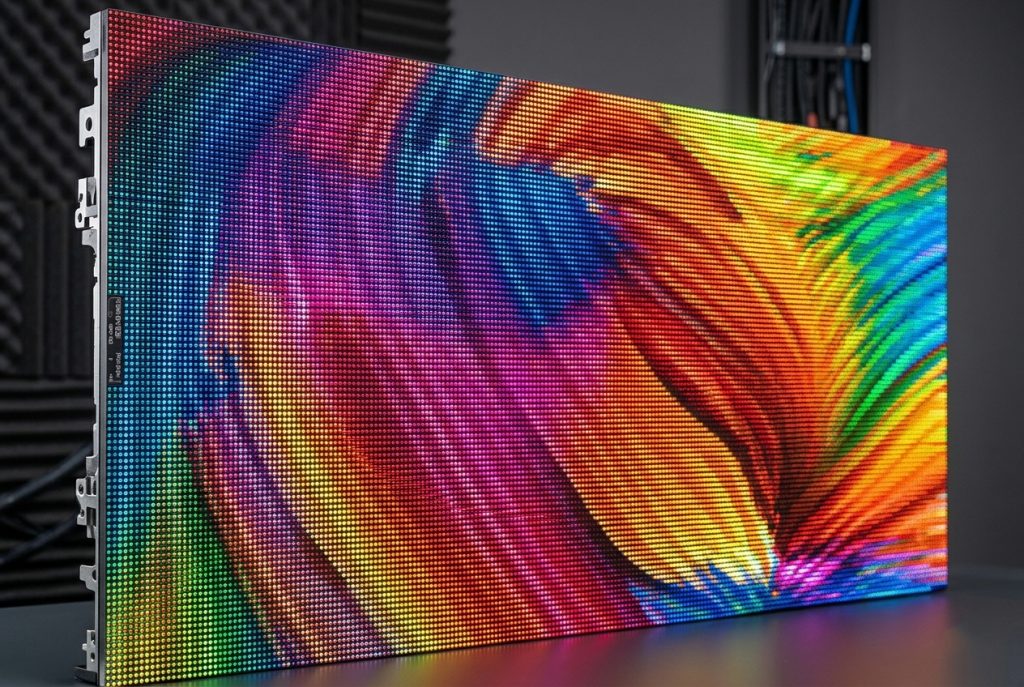

Crystal Clear Visuals in Any Light, Energy Saved

With high brightness (>5500 nits) and a high refresh rate, the FC-D Model ensures that your advertisements are always clear and vivid, even under direct sunlight. Integrated energy-saving technology optimizes power consumption without compromising visual quality, providing an eco-friendly solution that lowers operating costs.

High Resolution

Product Specification

outdoor
Pixel Pitch
2.604
2.976
3.91
4.81
-----
LED lamp
SMD1415
SMD1921
SMD1921
SMD1921
-----
Density(dots/m2)
147456
112896
65536
43264
-----
Brightness
≥3500nits
≥3500nits
≥3500nits
≥3500nits
-----
IP rating
Pixel Pitch
Pixel Pitch
IP65
Pixel Pitch
Pixel Pitch
Cabinet Materiel
Pixel Pitch
Pixel Pitch
Die-casting Aluminum
Pixel Pitch
Pixel Pitch
Scan
32scan
21scan
16scan
13scan
-----
Module weight
Pixel Pitch
Pixel Pitch
0.5kg
Pixel Pitch
Pixel Pitch
Cabinet Weight
Pixel Pitch
Pixel Pitch
7.5kg
Pixel Pitch
Pixel Pitch
Module size(mm)
Pixel Pitch
Pixel Pitch
250*250
Pixel Pitch
Pixel Pitch
Cabinet size(mm)
Pixel Pitch
Pixel Pitch
500*500*85
Pixel Pitch
Pixel Pitch
Module pixel
96*96dots
84*84dots
64*64dots
52*52dots
-----
Cabinet pixel
192*192dots
168*168dots
128*128dots
104*104dots
-----
Max Power
Pixel Pitch
Pixel Pitch
600w/sqm
Pixel Pitch
Pixel Pitch
Average Power
Pixel Pitch
Pixel Pitch
360w/sqm
Pixel Pitch
Pixel Pitch
Viewing Angle
Pixel Pitch
Pixel Pitch
Horizontal 140(+70/-70) deg
Pixel Pitch
Pixel Pitch
Control way
Pixel Pitch
Pixel Pitch
Synchronous / Asynchronous
Pixel Pitch
Pixel Pitch
Gray Scale
Pixel Pitch
Pixel Pitch
16 bit
Pixel Pitch
Pixel Pitch
Operating system
Pixel Pitch
Pixel Pitch
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Pixel Pitch
Pixel Pitch
Work humidity
Pixel Pitch
Pixel Pitch
10% ~ 90%
Pixel Pitch
Pixel Pitch
Work temperature
Pixel Pitch
Pixel Pitch
﹣20 ~﹢65℃
Pixel Pitch
Pixel Pitch
