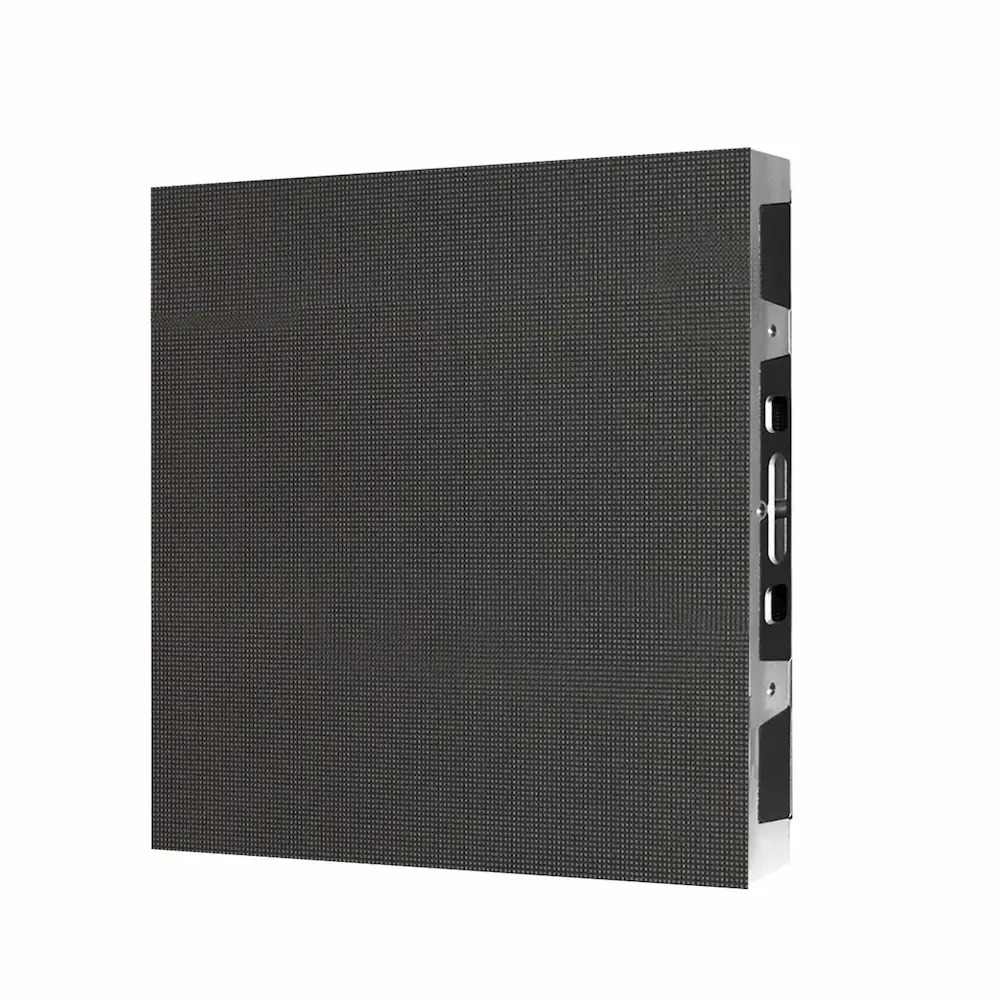

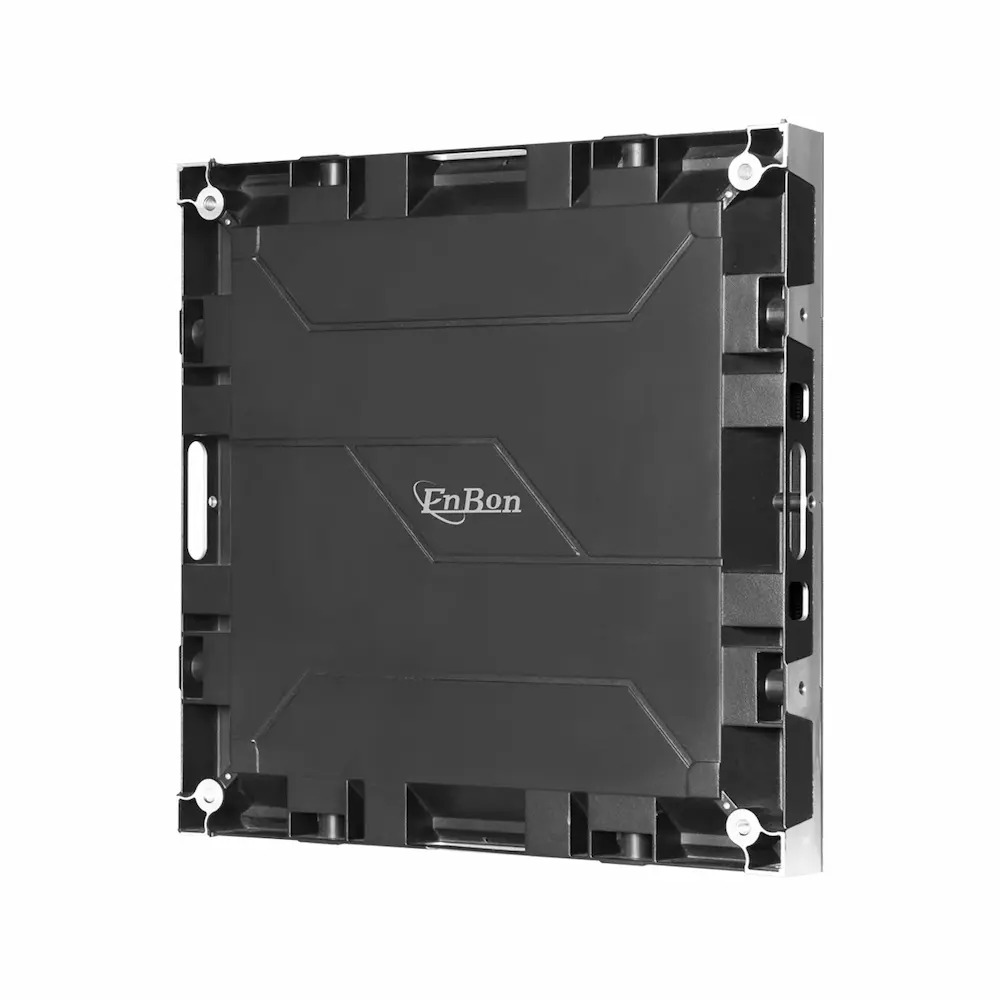

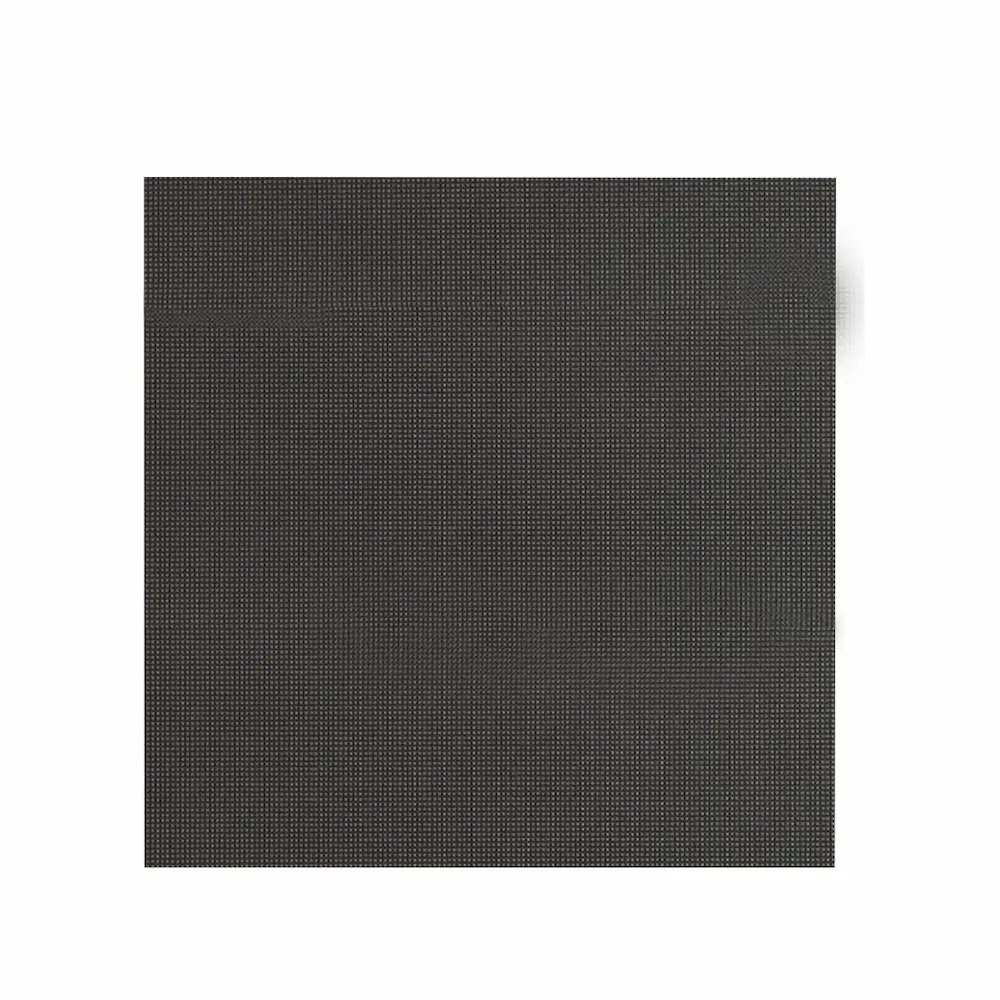

Enbon FS Series Small Pitch Indoor LED Display – Full Front Service

Enbon FS Series small pitch indoor LED display adopts full front maintenance, die-casting aluminum cabinet (5.5kg), P1.579-P2.5 pixel pitch, 3840/7680Hz high refresh rate & IP45 front protection, perfect for metro, KTV, cinema and VIP rooms.

Category:

Indoor Fixed FS Series

  • Perfect Flatness
  • Refresh 3840Hz
  • Uitra light
  • Performance


Maintenance Method

Support Full Front Maintenance
Can Be installed Directly On The Wall

Realize Your 2K, 4K, and 8K Vision

Bring your content to life with stunning detail. The FS Series is optimized for high-refresh rates and deep color contrast, making it ideal for broadcasting, high-end boardrooms, and digital cinemas.

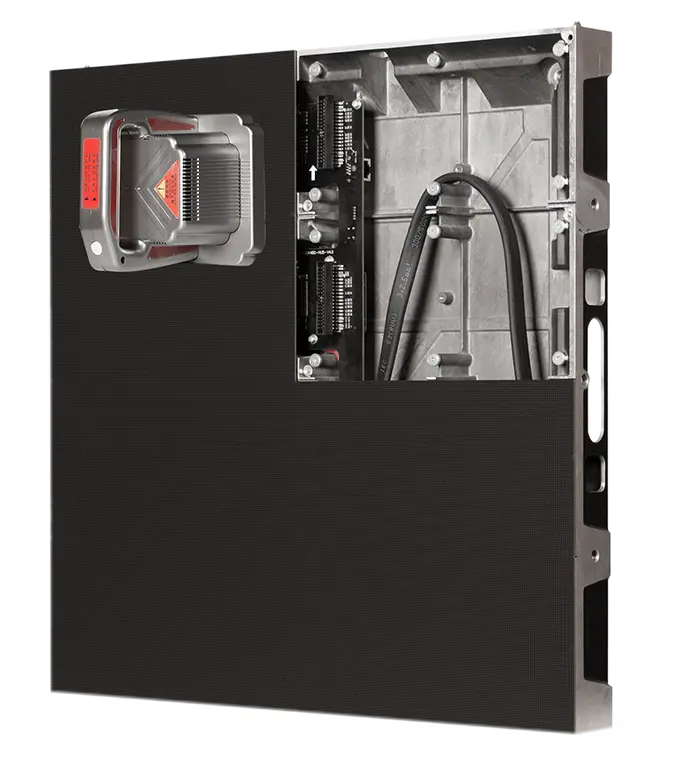

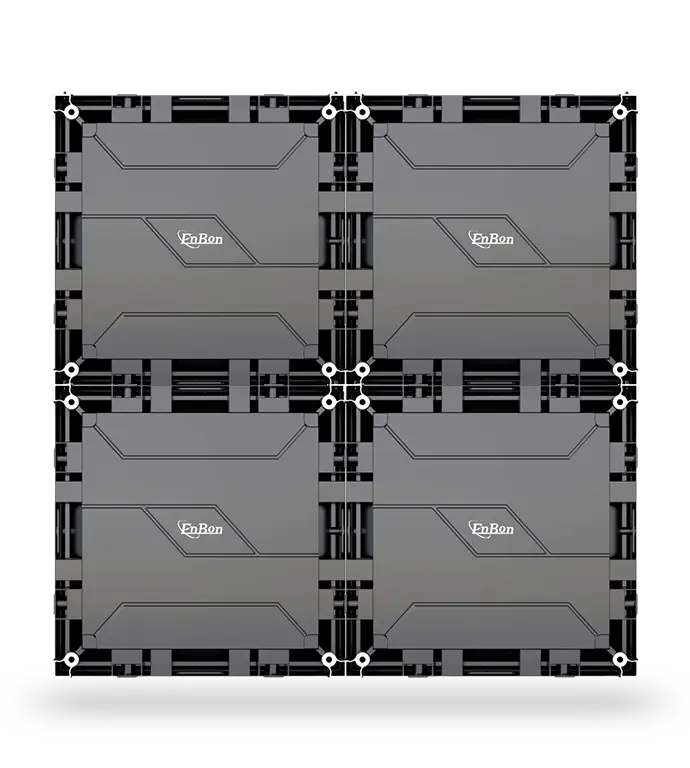

Cable-less Splicing

Cableless Connection Between Module And Cabinets
Support Front Maintenance And Cableless installation

  • Handles
  • Corner Cover

  • Power Box

  • Fast Lock Between
    Left and Right Cabinets

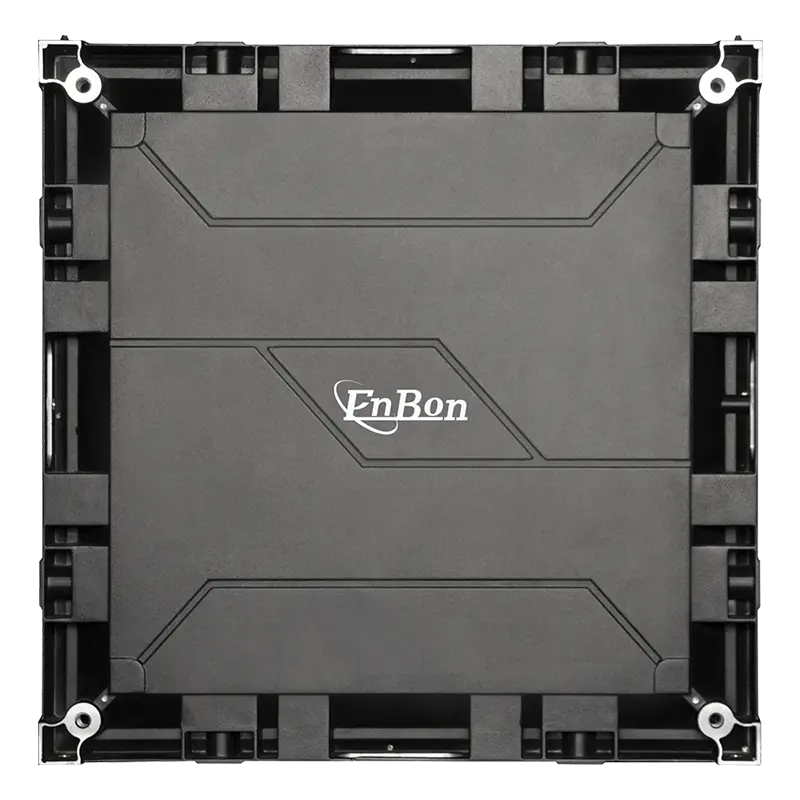

Super Lightweight

Aluminum Panel 5.5kg/pcs With a thickness of 5 mm

Installation Case

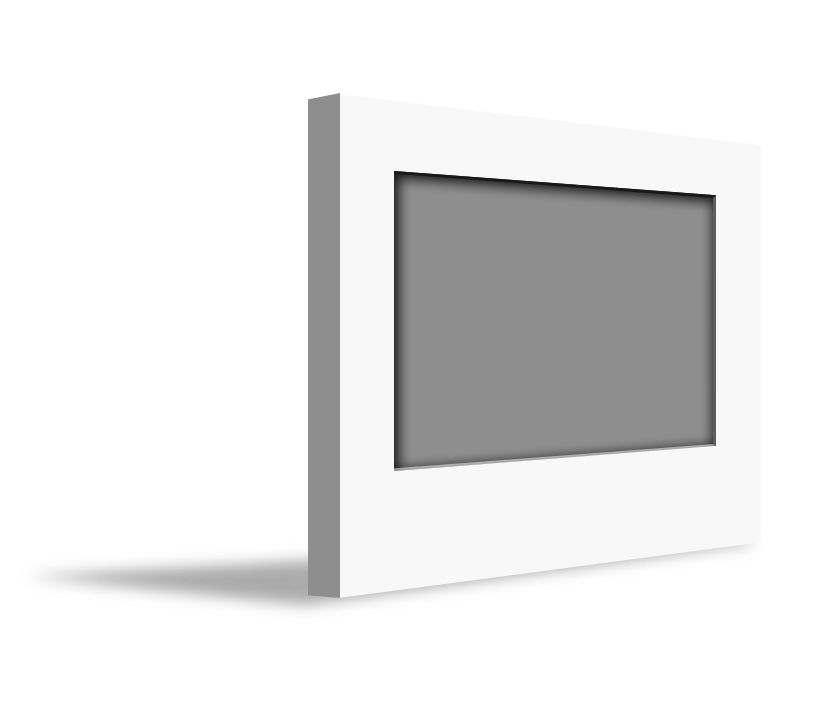

Embedded Installation

Installation Case

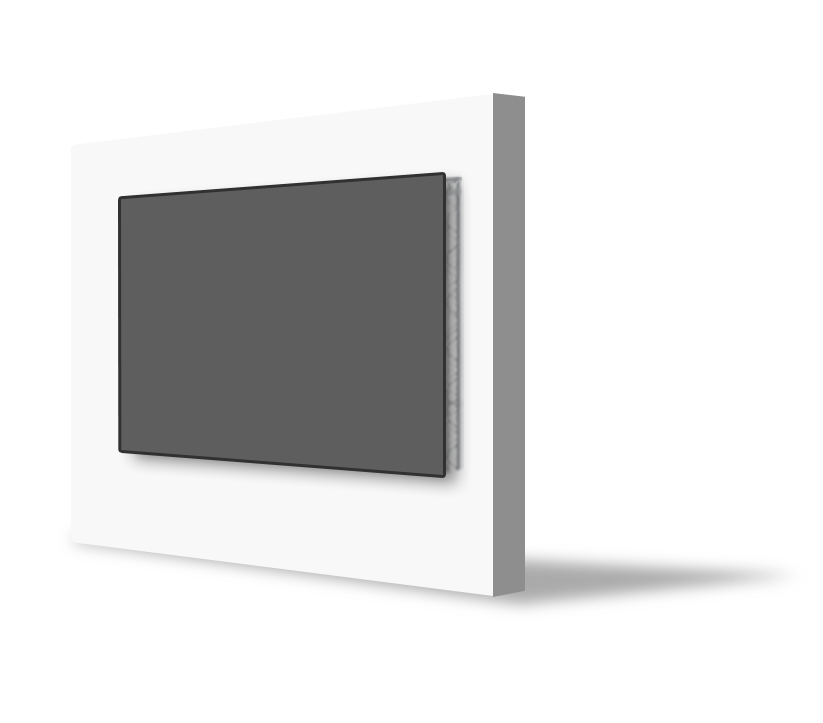

Flat Wall Mounted

Aluminum Panel 5.5kg/pcs With a thickness of 5 mm

Seamless Connection & Cable-less Splicing

Say goodbye to messy wiring. Our FS Series features an internal cable-less connection between the module and cabinet, ensuring a stable signal, cleaner look, and superior screen flatness.

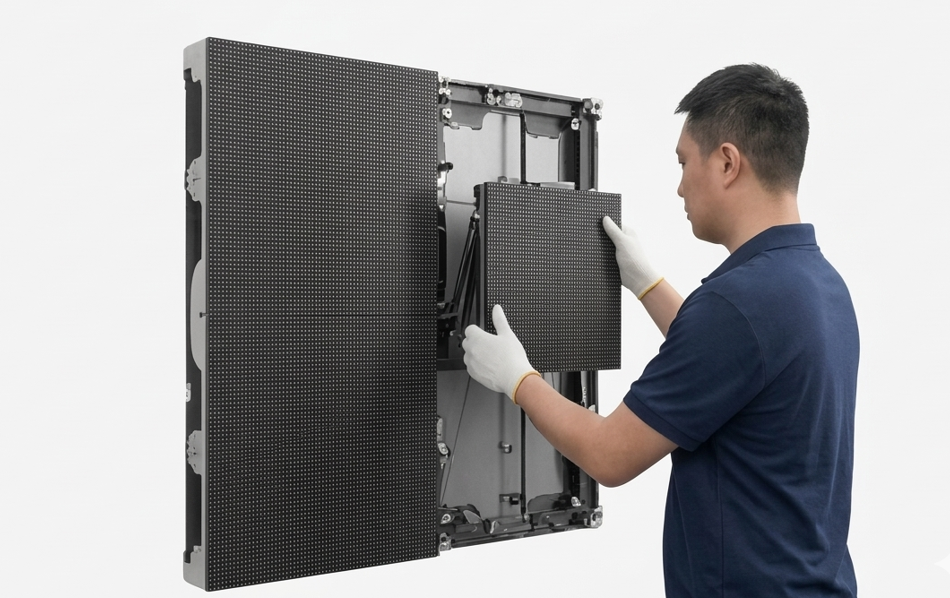

FULL FRONT SERVICE & EASY MAINTENANCE

Designed for front service, every module is easy to remove for quick maintenance without rear access

High Resolution

Product Specification

Indoor
Pixel Pitch
1.579
1.875
2.5
3
-----
LED lamp
SMD1212
SMD1515
SMD2020
SMD2020
-----
Density(dots/m2)
401111
284444
160000
111111
-----
Brightness
≤600 nits
≤600 nits
≥700 nits
≥600 nits
-----
IP rating
Pixel Pitch
Pixel Pitch
Front IP45/Rear IP30
Pixel Pitch
Pixel Pitch
Cabinet Materiel
Pixel Pitch
Pixel Pitch
Die-casting Aluminum
Pixel Pitch
Pixel Pitch
Scan
38 scan
64 scan
32 scan
40 scan
-----
Cabinet Weight
Pixel Pitch
Pixel Pitch
5.5 kg
Pixel Pitch
Pixel Pitch
Module size(mm)
Pixel Pitch
Pixel Pitch
240*120
Pixel Pitch
Pixel Pitch
Cabinet size(mm)
Pixel Pitch
Pixel Pitch
480*480*62
Pixel Pitch
Pixel Pitch
Module pixel
152*76 dots
128*128 dots
96*96 dots
80*80 dots
-----
Cabinet pixel
304*304 dots
256*256 dots
192*192 dots
160*160 dots
-----
Max Power
Pixel Pitch
Pixel Pitch
550 w/sqm
Pixel Pitch
Pixel Pitch
Average Power
Pixel Pitch
Pixel Pitch
185 w/sqm
Pixel Pitch
Pixel Pitch
Viewing Angle
H140(+70/-70) deg
Pixel Pitch
V140(+70/-70)deg
Pixel Pitch
Control way
Pixel Pitch
Pixel Pitch
Synchronous / Asynchronous
Pixel Pitch
Pixel Pitch
Gray Scale
Pixel Pitch
Pixel Pitch
13-16 bit
Pixel Pitch
Pixel Pitch
Operating system
Pixel Pitch
Pixel Pitch
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Pixel Pitch
Pixel Pitch
Work humidity
Pixel Pitch
Pixel Pitch
10% ~ 90%
Pixel Pitch
Pixel Pitch
Work temperature
Pixel Pitch
Pixel Pitch
﹣20 ~﹢65℃
Pixel Pitch
Pixel Pitch
