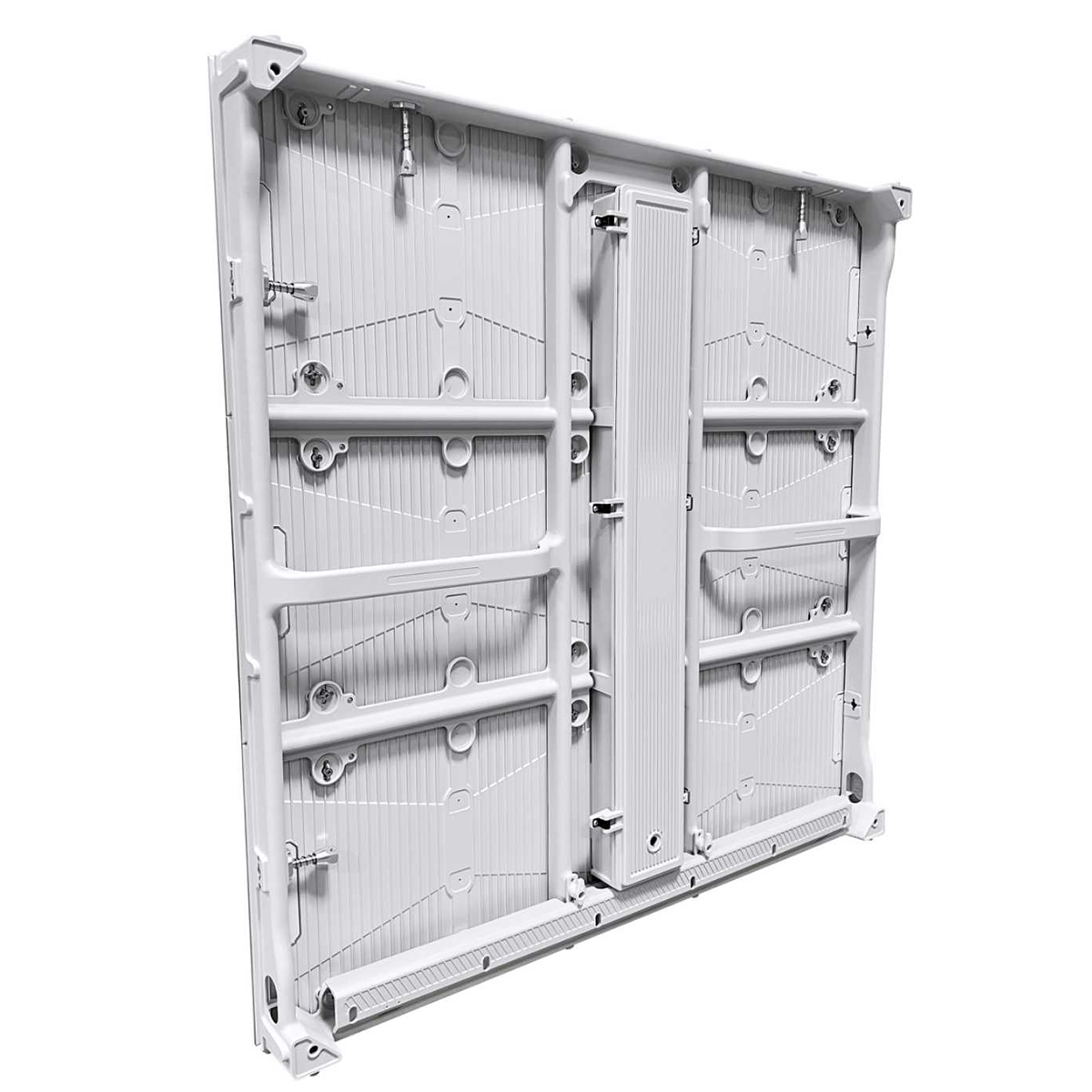

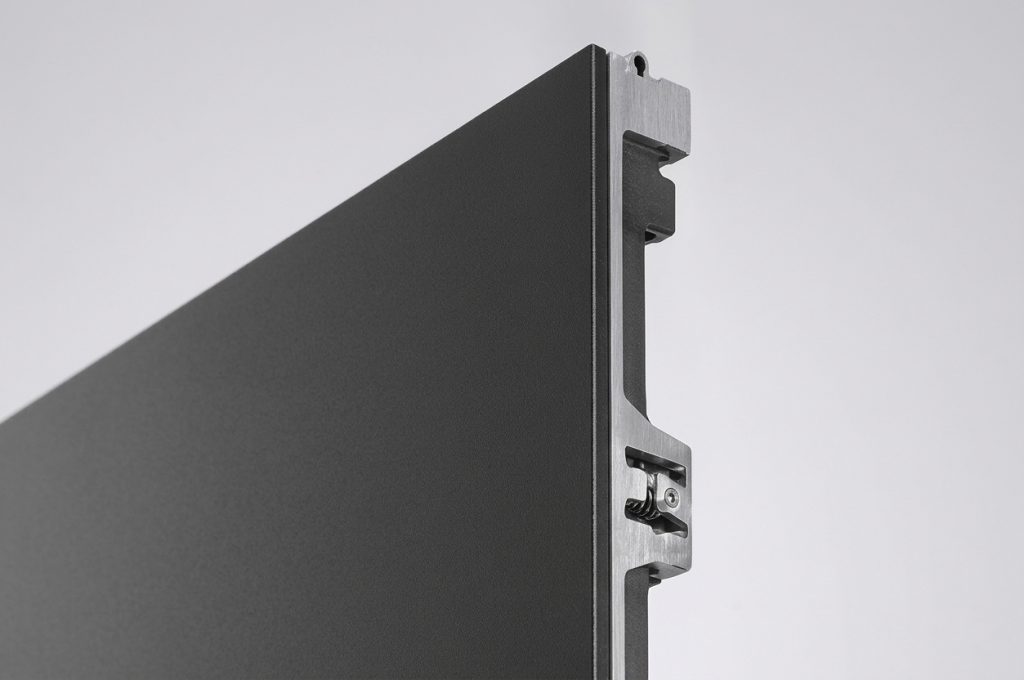

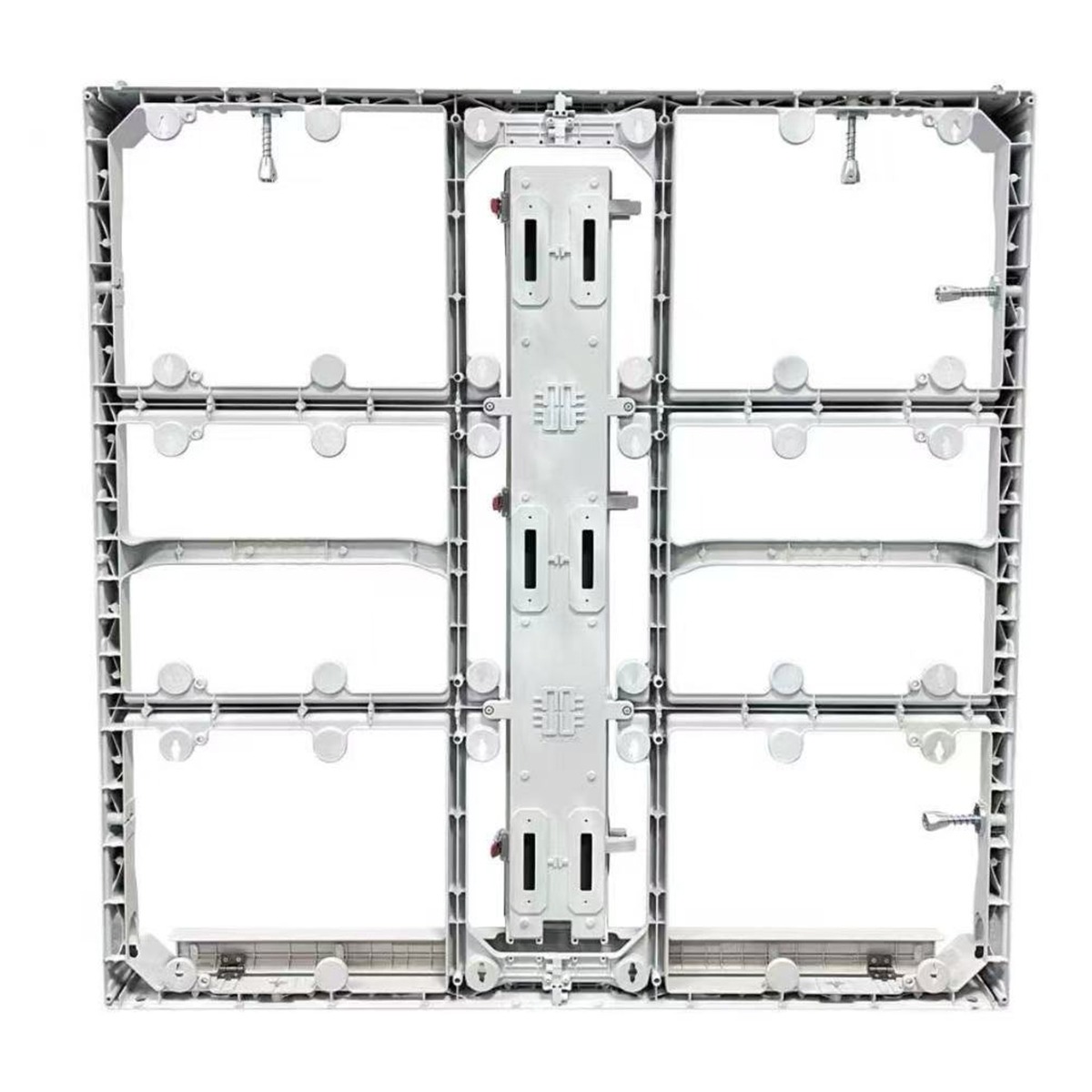

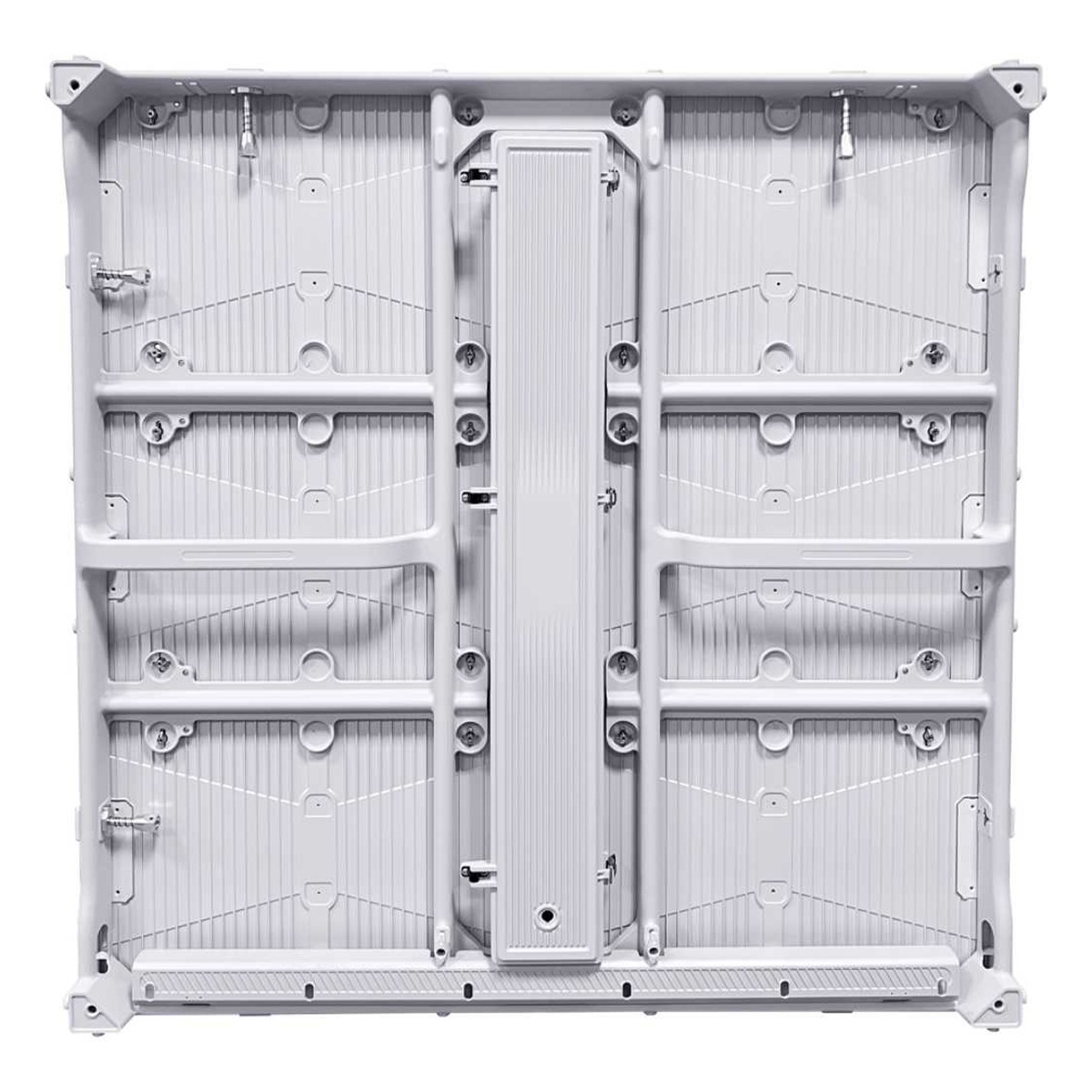

The FC Pro Series features an ultra-lightweight magnesium alloy cabinet, reducing the load on installation structures while maintaining exceptional durability. Its sleek profile ensures a modern aesthetic for any environment.
Unrivaled Visual Clarity and High Refresh Rate
Experience breathtaking visuals with a high refresh rate of 3840Hz and superior grayscale performance. Whether for live broadcasting or high-end advertising, the FC Pro Series delivers flicker-free, vibrant images every time.
Build Quality (Heat Dissipation)

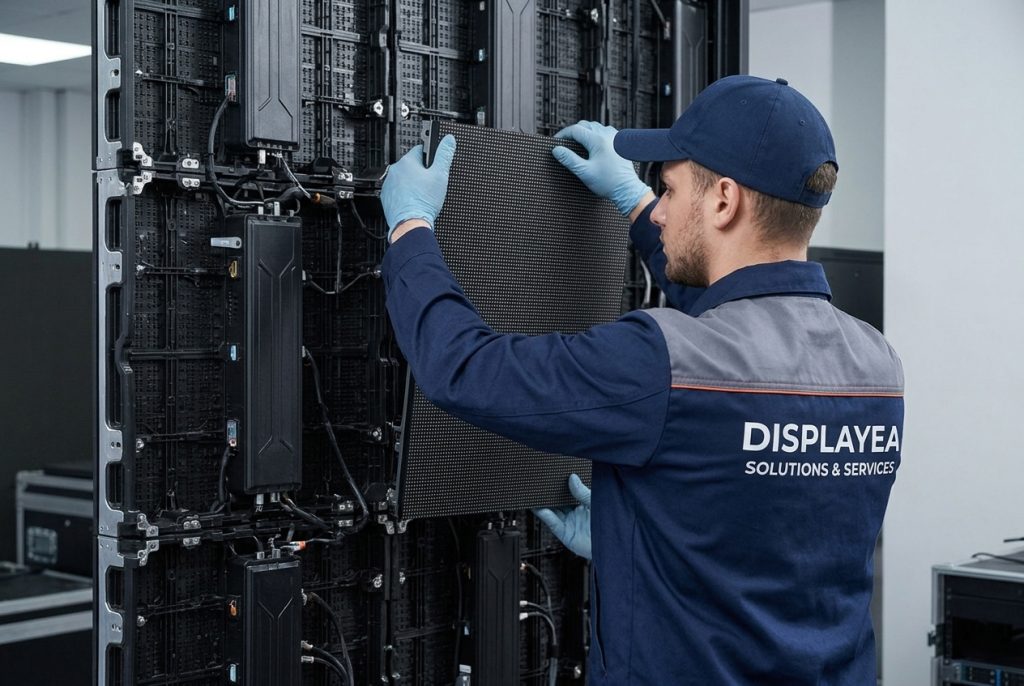

Effortless Maintenance with Dual-Access Design
Engineered for versatility, the FC Pro Series supports both front and rear maintenance. This allows for quick module replacement and servicing, even in tight installation spaces, saving time and labor costs.

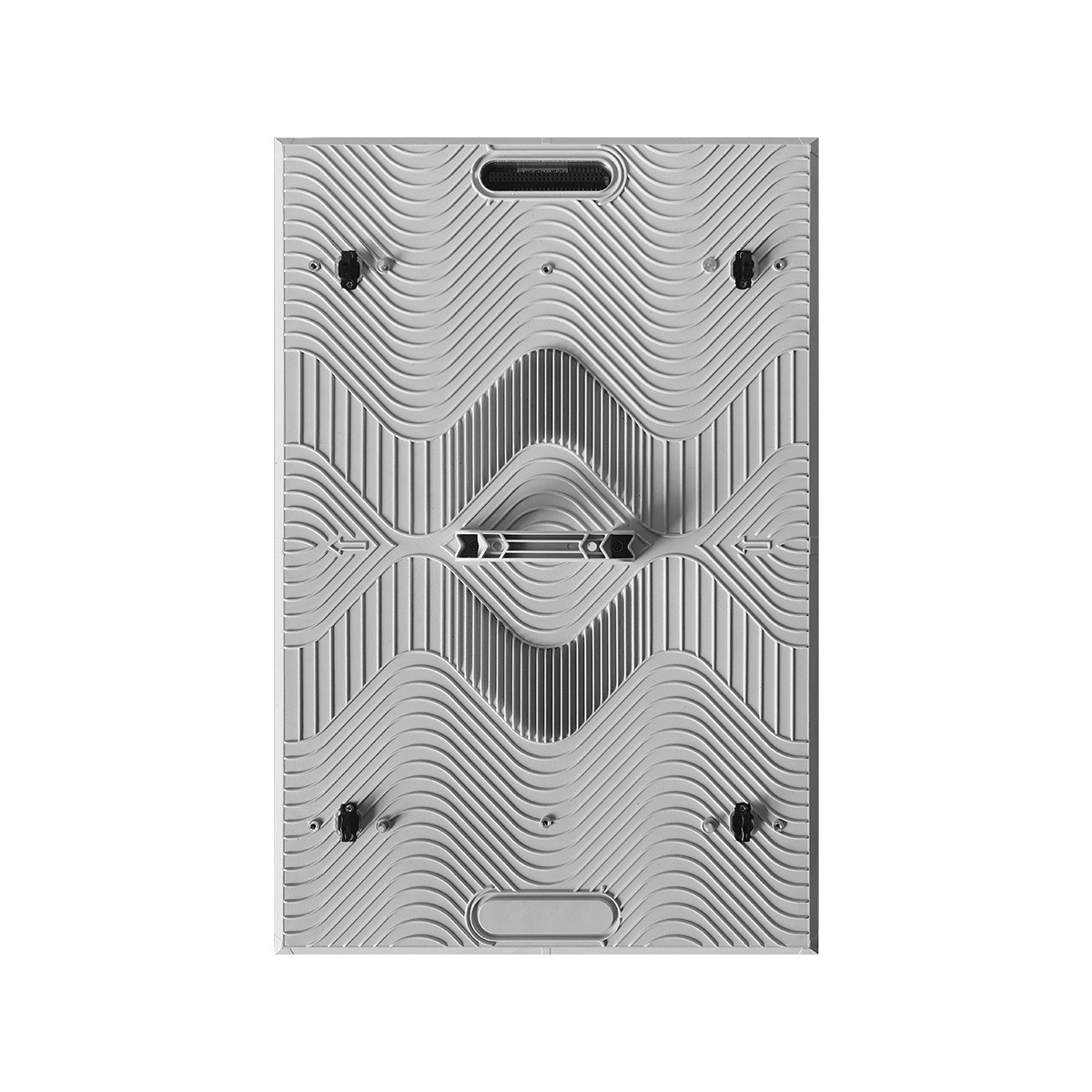

Advanced Heat Dissipation Technology
Our fanless design utilizes high-thermal conductivity materials to ensure silent operation and efficient cooling. This prevents overheating and extends the lifespan of the LEDs, ensuring 24/7 reliability.

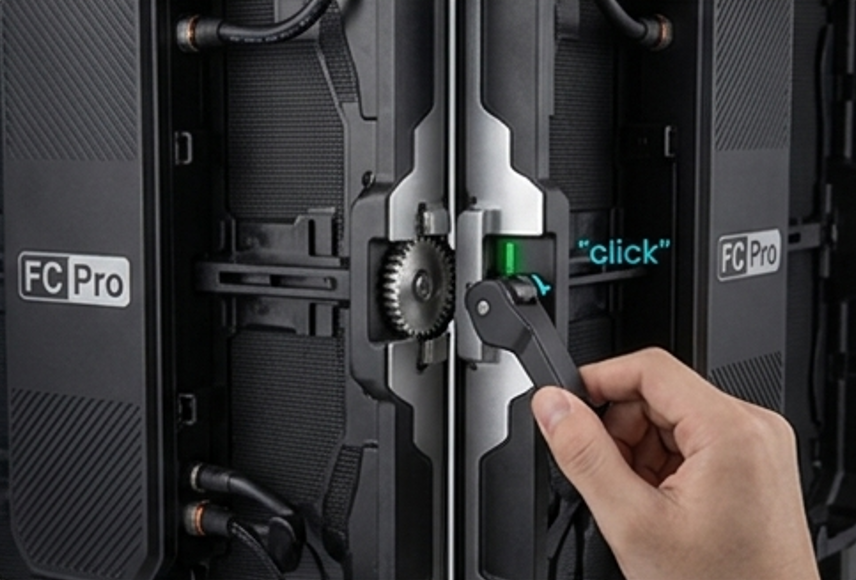

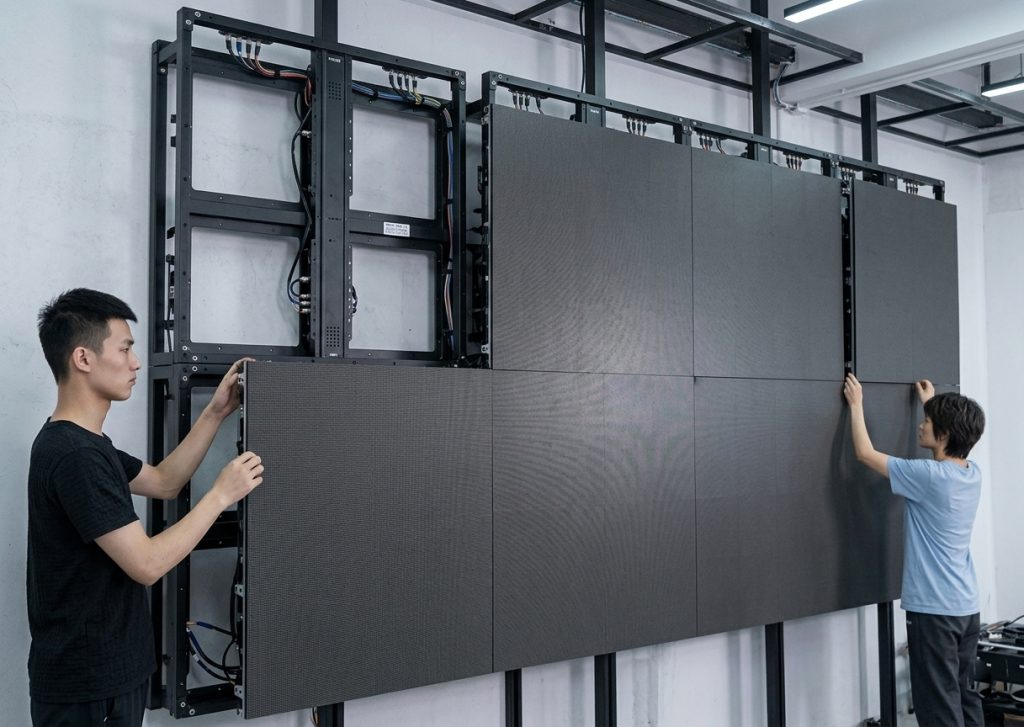

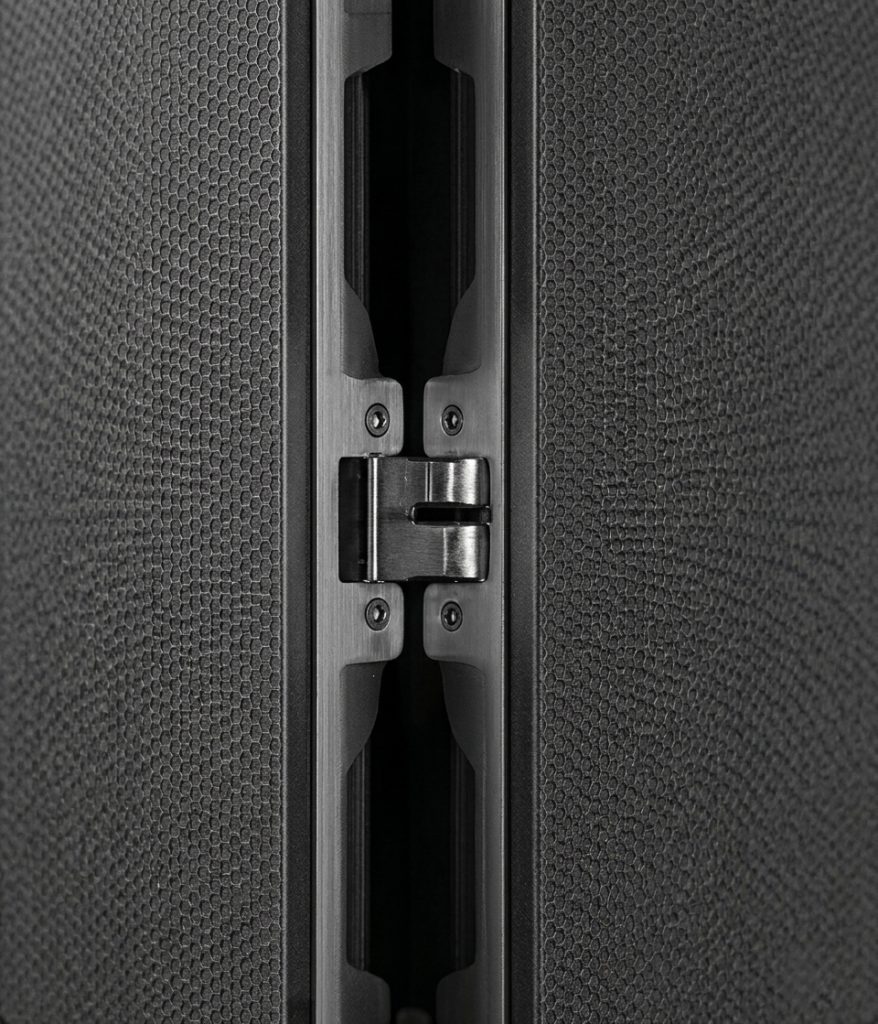

Fast-Lock System for Rapid Deployment
Equipped with a precision fast-locking mechanism, the FC Pro Series allows for one-man installation. Achieve perfect alignment and gapless splicing for large-scale video walls in record time.

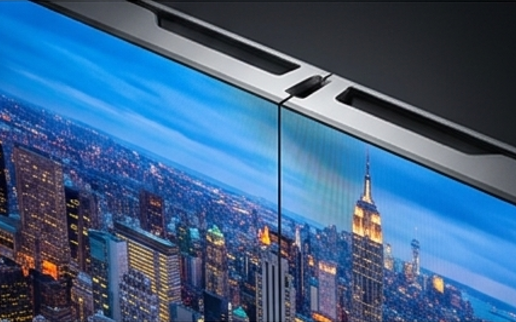

Seamless Splicing for Video Walls
Perfectly aligned and made massive, gapless displays effectively.
Seamless Splicing For Video Walls
Perfsctly align and create massive ,gapless displays efferticssiy.
Why Choose Displayea?
At Displayea, we specialize in high-performance LED solutions tailored for global brands. The FC Pro Series represents the pinnacle of display technology, combining innovation, energy efficiency, and world-class support to bring your vision to life.

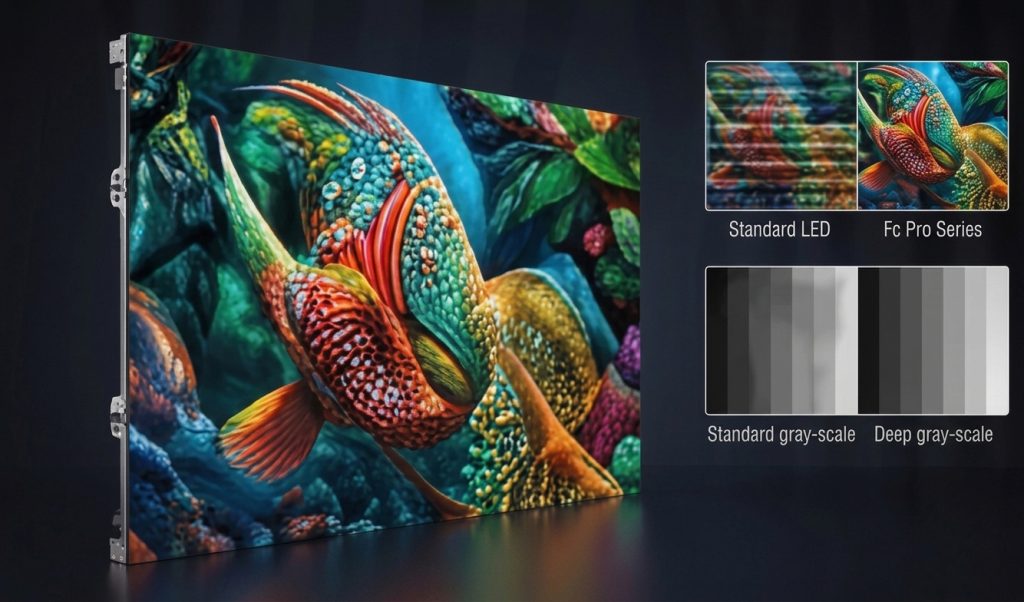

Exceptional Image Fidelity: A Side-by-Side Comparison
Product Specification
Pixel Pitch
4.44
5.7
6.67
8
10
LED lamp
SMD1921
SMD2727
SMD2727
SMD2727
SMD2727
Density(dots/m2)
50625
30625
22500
15625
10000
Brightness
6500 nits
5500~10000nits
5500~10000nits
5500~10000nits
5500~10000nits
IP rating
Pixel Pitch
Pixel Pitch
IP65
Pixel Pitch
Pixel Pitch
Cabinet Materiel
Pixel Pitch
Pixel Pitch
Die-casting Aluminum
Pixel Pitch
Pixel Pitch
Scan
9 scan
7 scan
6 scan
3 scan
2 scan
Cabinet Weight
Pixel Pitch
Pixel Pitch
25 kg
Pixel Pitch
Pixel Pitch
Module size(mm)
Pixel Pitch
Pixel Pitch
480*320
Pixel Pitch
Pixel Pitch
Cabinet size(mm)
Pixel Pitch
Pixel Pitch
960*960*87
Pixel Pitch
Pixel Pitch
Module pixel
108*72 dots
84*56dots
72*48 dots
60*40dots
48*32 dots
Cabinet pixel
216*216 dots
168*168 dots
144*144 dots
120*120 dots
96*96 dots
Max Power
Pixel Pitch
Pixel Pitch
Common Anode: 700(P4.44/P5.7/P6.64/P8),800(P10) Common Cathode: 550
Pixel Pitch
Pixel Pitch
Average Power
Pixel Pitch
Pixel Pitch
Common Anode: 235(P4.44/P5.7/P6.64/P8), 268(P10)
Common Cathode: 185
Pixel Pitch
Pixel Pitch
Viewing Angle
Pixel Pitch
Pixel Pitch
H140 (+70/-70) deg V140 (+70/-70) deg
Pixel Pitch
Pixel Pitch
Control way
Pixel Pitch
Pixel Pitch
Synchronous / Asynchronous
Pixel Pitch
Pixel Pitch
Gray Scale
Pixel Pitch
Pixel Pitch
16 bit
Pixel Pitch
Pixel Pitch
Operating system
Pixel Pitch
Pixel Pitch
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Pixel Pitch
Pixel Pitch
Work humidity
Pixel Pitch
Pixel Pitch
10% ~ 90%
Pixel Pitch
Pixel Pitch
Work temperature
Pixel Pitch
Pixel Pitch
﹣20 ~﹢65℃
Pixel Pitch
Pixel Pitch
