FC Series

Enbon FC Ultra Thin LED Screen With Low Consumption, Waterproof And Outdoor Fixed Mount

Enbon FC Ultra thin LED screen used for outdoor fixed front and back install, customize thinner panels,lower cost, lighter weight cabinet, aluminum profile, outdoor led billboard

FC Series

Outdoor Permanent Totally Front Maintenace LED Screen

  • Performance
  • Highlight
  • Quick Lock
  • IP65
  • 3840Hz
  • Energy

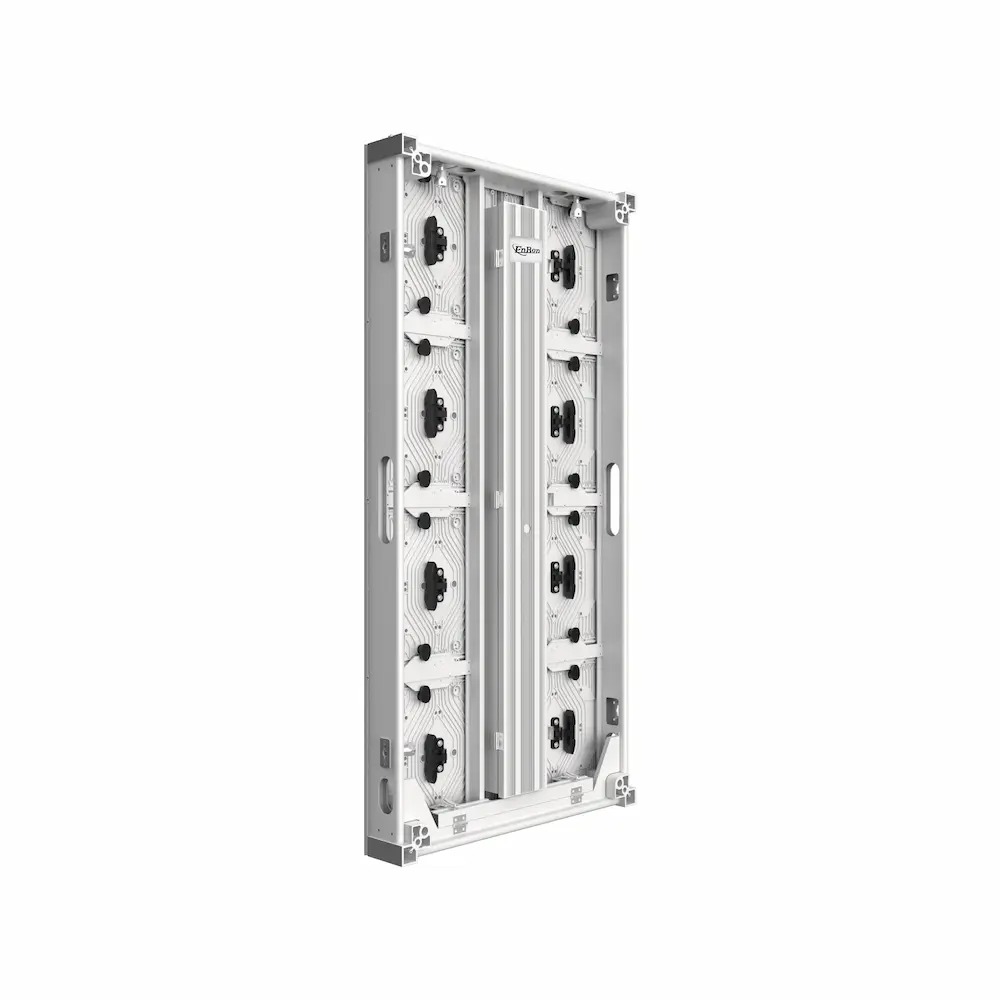

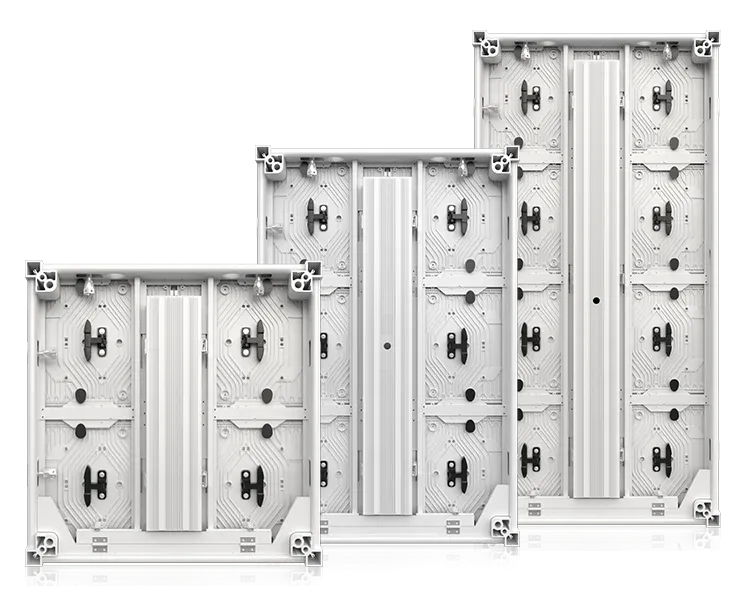

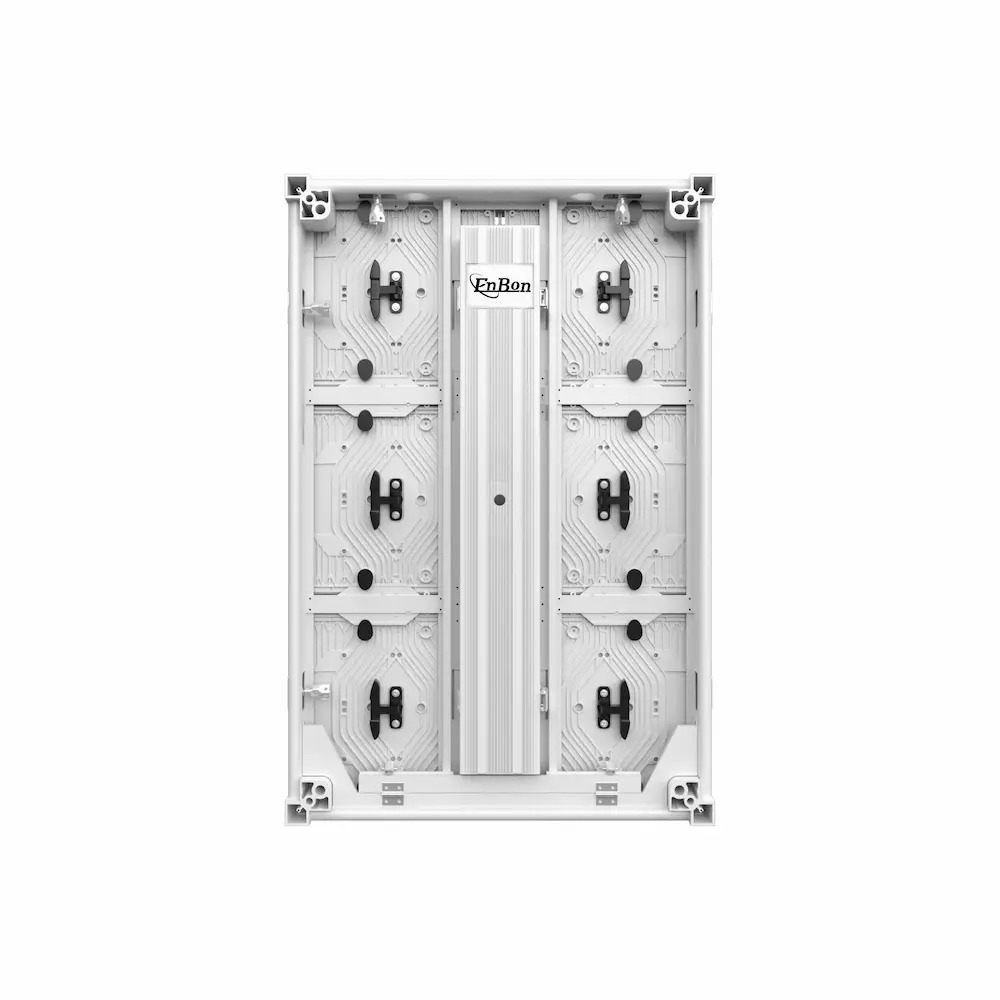

Lightweight 8KG Cabinets

Super Lightweight

Light Weight, Aluminum Panel 8kg /pcs With Thickness is 85mm

IP65 Rated Waterproofing

Designed to excel outdoors, the FC Series boasts a robust IP65-rated waterproof and dustproof design. From unexpected thunderstorms to dusty environments, these displays continue to deliver flawless performance, protecting your investment and ensuring uninterrupted operation for crucial advertising campaigns or events.

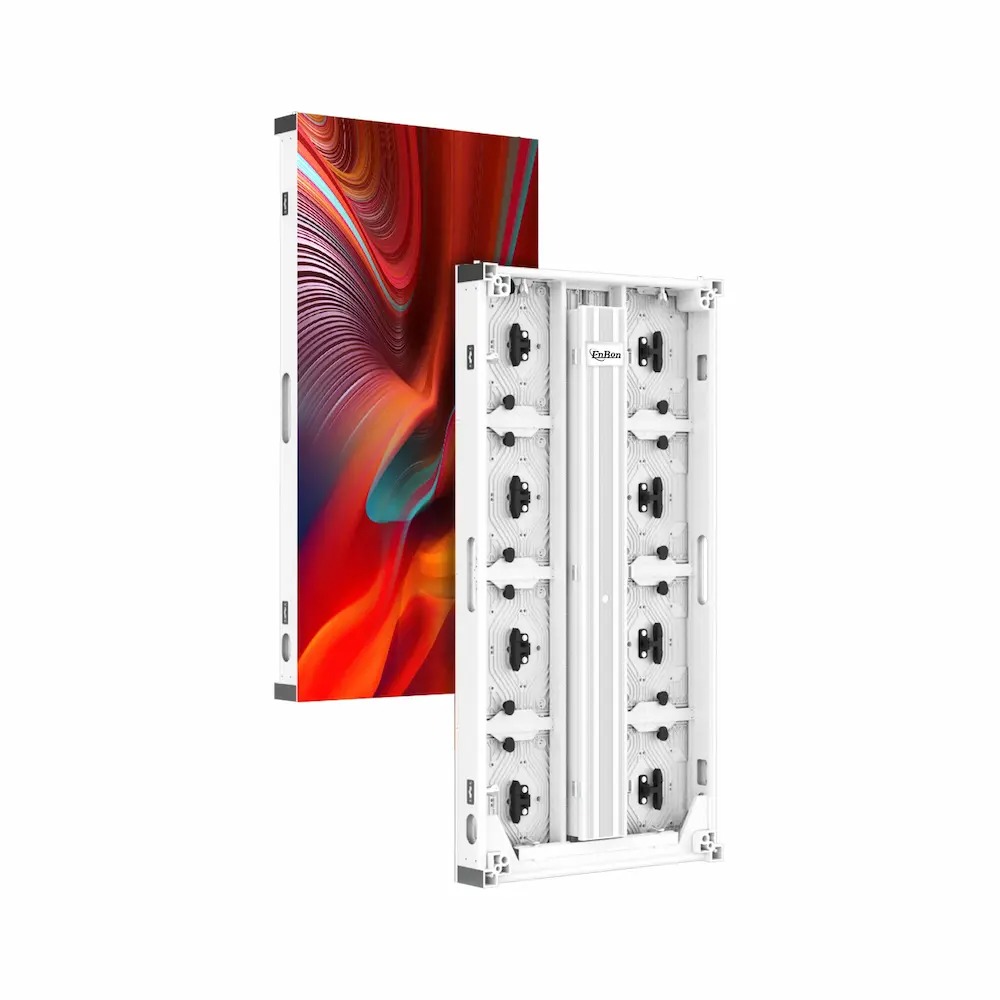

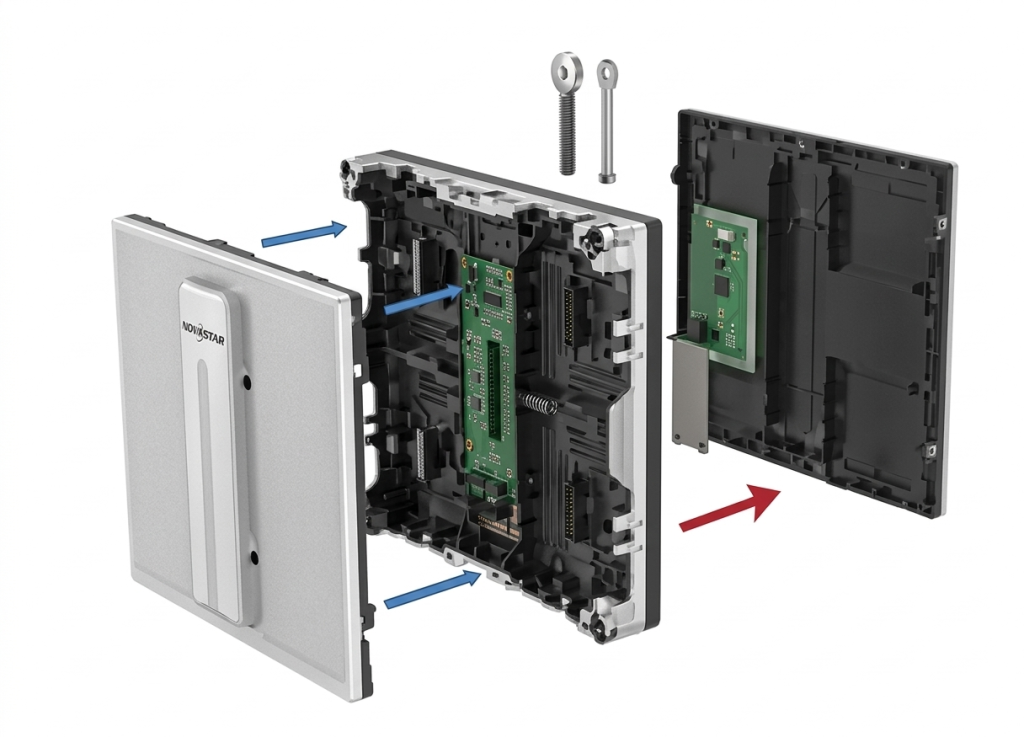

Effortless Front & Rear Maintenance

Minimize downtime and simplify service. The FC Series supports both front and rear maintenance access, allowing technicians to quickly service components or replace modules regardless of the installation type.

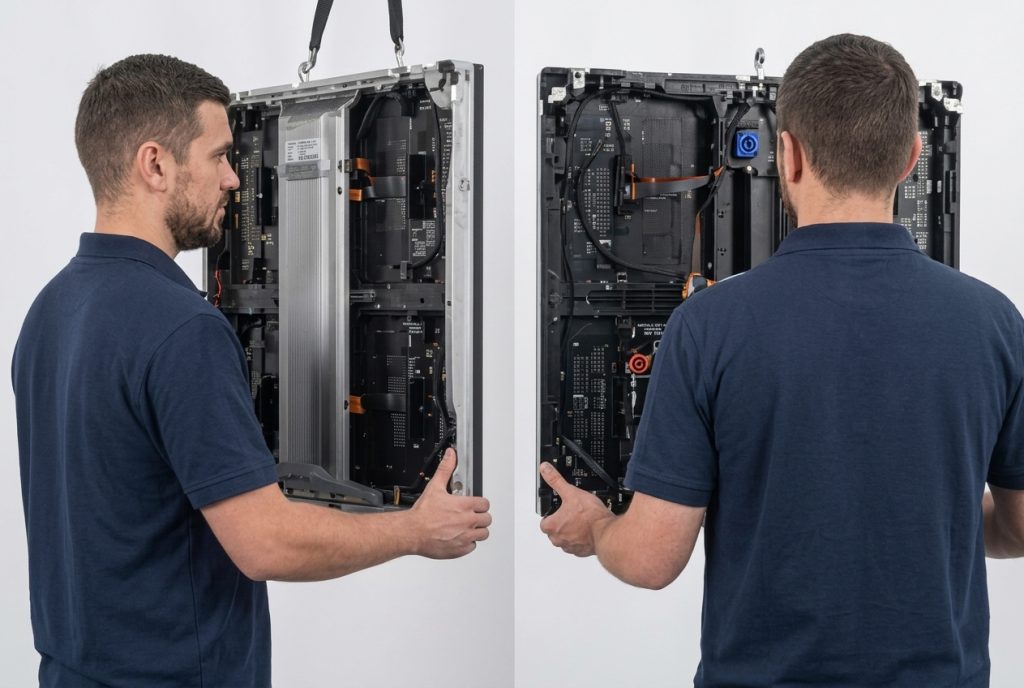

Dual-Service Accessibility

Ready to Upgrade Your Display Solution?

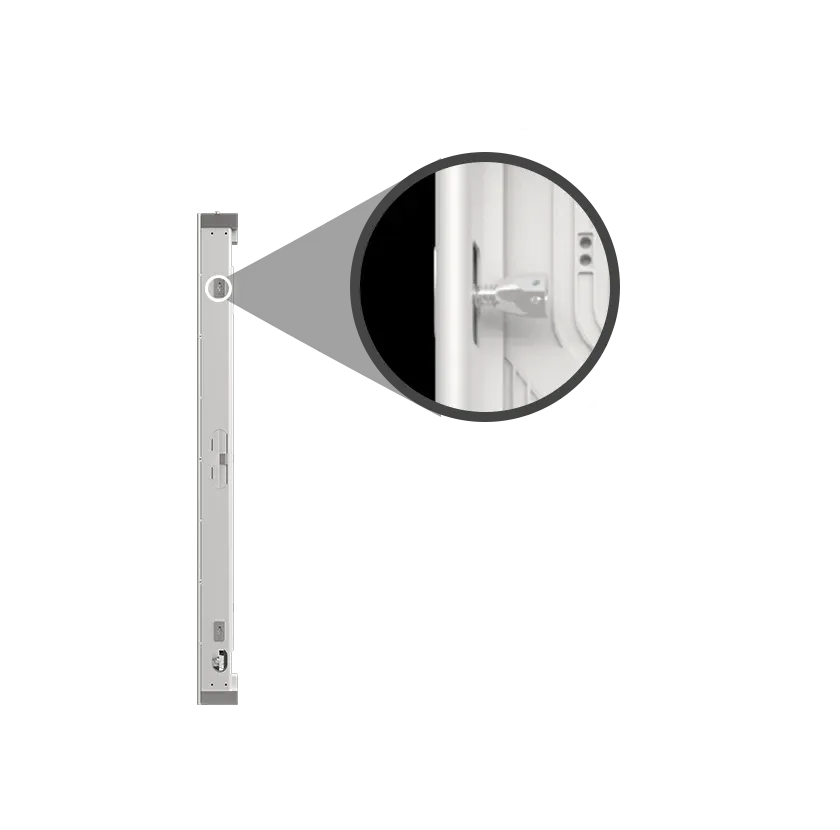

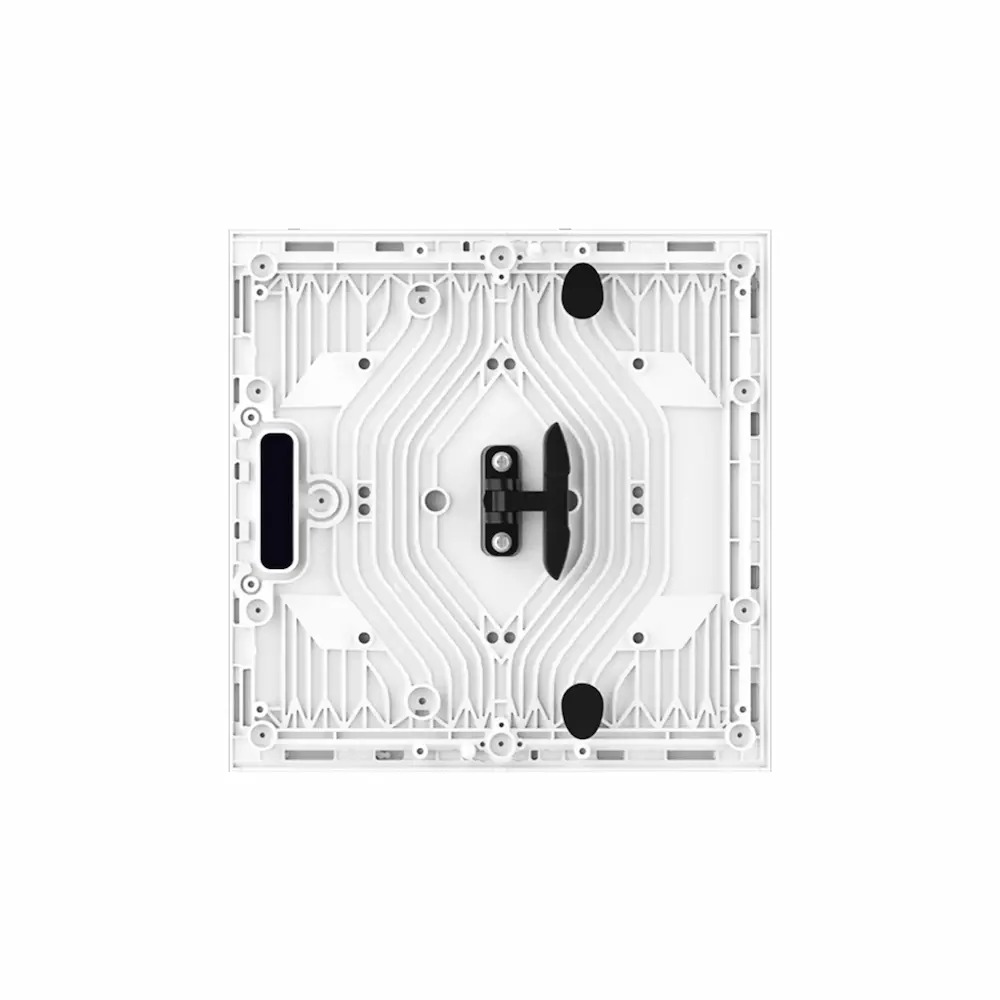

Advanced Lock, Quick Installation

Press and turn to unlock the panel

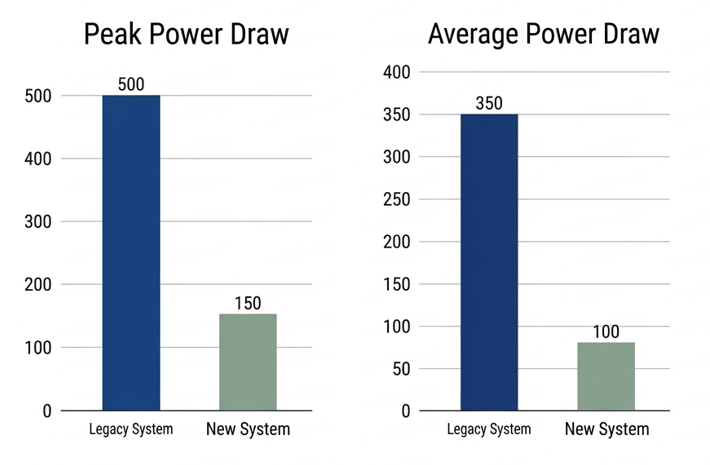

Significantly Lower Power Consumption

Go green and reduce operational costs without sacrificing brightness or visual impact. The FC Series utilizes advanced energy-efficient technologies and components, ensuring it consumes significantly less power compared to traditional LED displays, leading to long-term savings and a reduced environmental footprint.

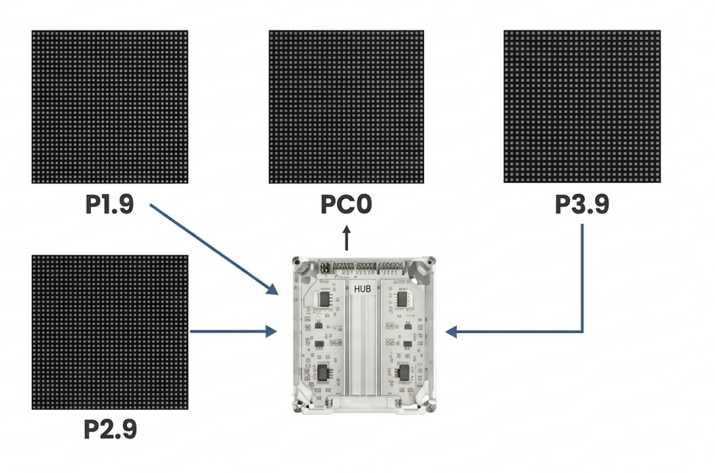

Universal HUB Card Compatibility

Streamline your inventory and future upgrades. The universal HUB card design means different modules within the FC series can seamlessly utilize the same HUB infrastructure, simplifying management.

High Resolution

Product Specification

outdoor
Pixel Pitch
1.95
2.604
2.97
3.91
-----
LED lamp
SMD1415
SMD1415
SMD1415
SMD1415
-----
Density(dots/m2)
262144
147456
112896
65536
-----
Brightness
≥4500 nits
≥4500 nits
≥4500 nits
≥5500 nits
-----
IP rating
Pixel Pitch
Pixel Pitch
IP65
Pixel Pitch
Pixel Pitch
Cabinet Materiel
Pixel Pitch
Pixel Pitch
Aluminum Profile
Pixel Pitch
Pixel Pitch
Scan
32 scan
24 scan
21 scan
8 scan
-----
Module Weight
Pixel Pitch
Pixel Pitch
0.5 kg
Pixel Pitch
Pixel Pitch
Cabinet Weight
Pixel Pitch
Pixel Pitch
8 kg
Pixel Pitch
Pixel Pitch
Module size(mm)
Pixel Pitch
Pixel Pitch
250*250
Pixel Pitch
Pixel Pitch
Cabinet size(mm)
Pixel Pitch
Pixel Pitch
500*500*85
Pixel Pitch
Pixel Pitch
Module pixel
128*128 dots
96*96 dots
84*84 dots
64*64 dots
-----
Cabinet pixel
256*256 dots
192*192 dots
168*168 dots
128*128 dots
-----
Max Power
Common Anode-700 / Common Cathode-550
Common Anode-700 / Common Cathode-550
Common Anode-700 / Common Cathode-550
Common Anode-800 / Common Cathode-600
Pixel Pitch
Pixel Pitch
Average Power
Common Anode-235 / Common Cathode-168
Common Anode-235 / Common Cathode-168
Common Anode-235 / Common Cathode-168
Common Anode-268 / Common Cathode-200
Pixel Pitch
Pixel Pitch
Viewing Angle
Pixel Pitch
Pixel Pitch
H140(+70/-70) deg V140(+70/-70) deg
Pixel Pitch
Pixel Pitch
Control way
Pixel Pitch
Pixel Pitch
Synchronous / Asynchronous
Pixel Pitch
Pixel Pitch
Gray Scale
Pixel Pitch
Pixel Pitch
13-16 bit
Pixel Pitch
Pixel Pitch
Operating system
Pixel Pitch
Pixel Pitch
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Pixel Pitch
Pixel Pitch
Work humidity
Pixel Pitch
Pixel Pitch
10% ~ 90%
Pixel Pitch
Pixel Pitch
Work temperature
Pixel Pitch
Pixel Pitch
﹣20 ~﹢65℃
Pixel Pitch
Pixel Pitch
